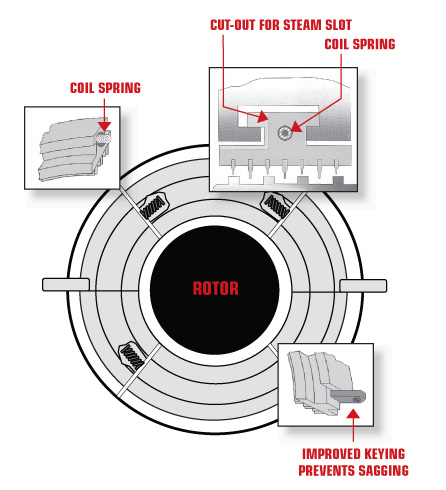

Shaft rubbing creates frictional heat which then causes bowed rotors. STAR’s Retractable Packing is designed to have greater radial clearance at start-up, prior to going through the first critical. As the steam flow increases in the turbine, the steam pressure behind the packing ring overcomes the spring and friction forces, causing the packing ring to close to the desired radial clearance, while avoiding any contact between the rotor and packing teeth.

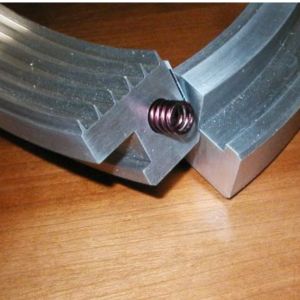

Retractable Seals

Retractable Steam Turbine Ring

Retractable Seals

Retractable Turbine Packing Ring

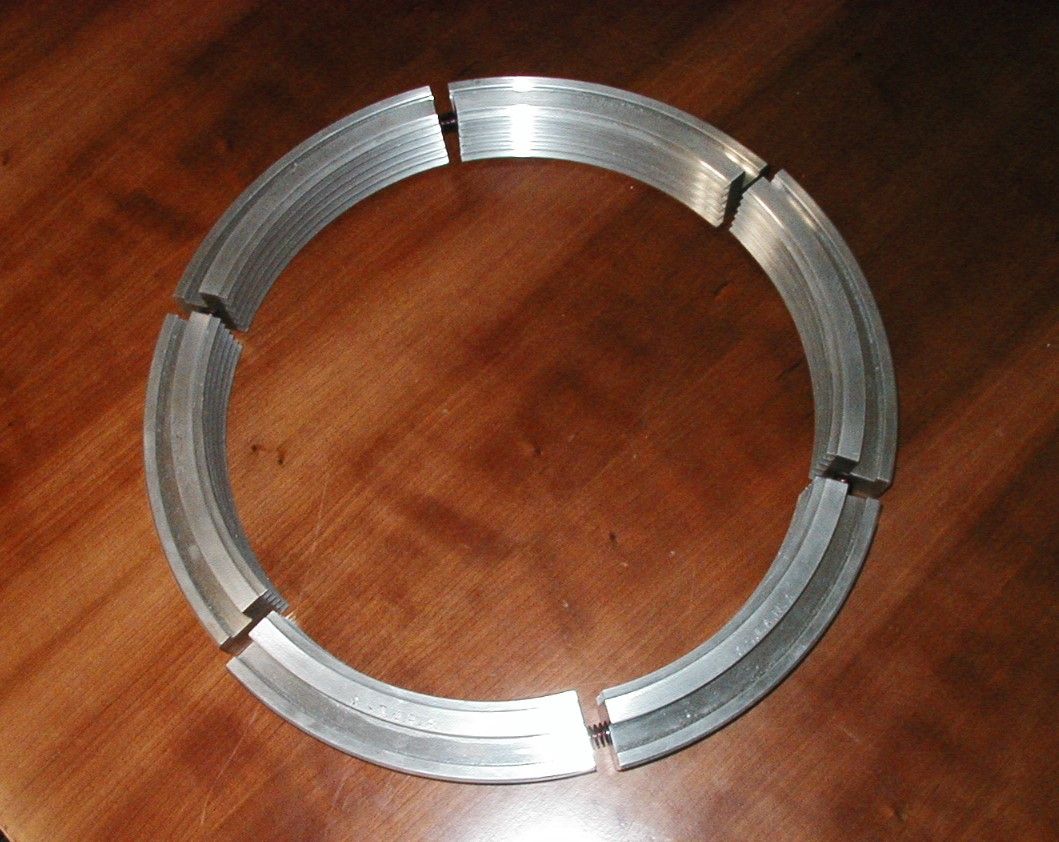

Retractable Packing Rings for Steam Turbines

  • Greatly reduces steam leakage
  • Can improve heat rate 1% – 2%
  • Can increase kw output 2% – 3%
  • Eliminates rubs at start-up
  • No modifications to the rotor or packing holders needed
  • Field proven in over 800 units

Schedule a call and take your next steps toward regaining efficiency.

Schedule a Call

Ready for better turbine efficiency? Please provide the information below and we will reach out to discuss your needs and probable solutions.
